Willwood Industries carries a large inventory of Temporary Grain Storage Bins and Tarpaulins. Temporary grain bins are available in many different sizes, constructed with either a corrugated steel or a plywood frame. The information below outlines the contents of your temporary grain bin package.

Willwood Industries has now added another alternative for the temporary storage of grain. Willwood has introduced an expandable / modular tarp, another economical product to temporarily store a very large quantity of grain. For more information Contact Us for details or view an animated video here, illustrating the innovative and affordable way to temporarily store very large amounts of grain.

For a complete list of temporary grain bin sizes and pricing click here now.

Willwood Industries ensures that each bin package contains all the materials necessary to build a temporary grain bin. All materials used in each grain bin package are new and of top quality. Temporary grain bins are an ideal solution for temporary grain storage.

Take a look at the product pictures of both the wood and steel constructed temporary grain bin. Refer to our tips at the bottom of this page for using your temporary grain storage bins.

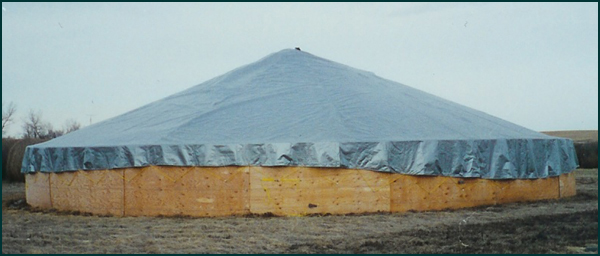

Plywood Temporary Grain Storage Bins

Complete package includes:
  • 3/8" fir plywood - carefully selected for strength and flexibility
  • All holes are pre-drilled
  • All zinc-plated bolts supplied with washers
  • Top quality 6.3 oz. silver colored tarp (See description below)
  • High tensile steel wire, 12 gauge to reinforce plywood. Recommended for bins over 34' diameter and larger, complete with adjustable ratchet tightener
  • Screws and washers to attach tarp to plywood
  • Exclusive tarpguard poly edge protector to protect tarp from plywood edge.
Optional:
  • Gate posts, 4" x 6" this will allow sheets to be removed after a portion of the grain has been removed. Gives you access with a front end loader or Bobcat
  • Heavy Duty tarp option (See description below)




Steel Temporary Grain Storage Bins

Complete package includes:
  • 48" high new galvanized 20 gauge wide corrugated metal for 30' to 75' diameter size bins
  • 48" high new galvanized 18 gauge wide corrugated metal for 90' diameter bin
  • 48" high new galvanized 16 gauge wide corrugated metal for 105' diameter bin
  • New 3/8" bin nuts and bolts with neoprene washers

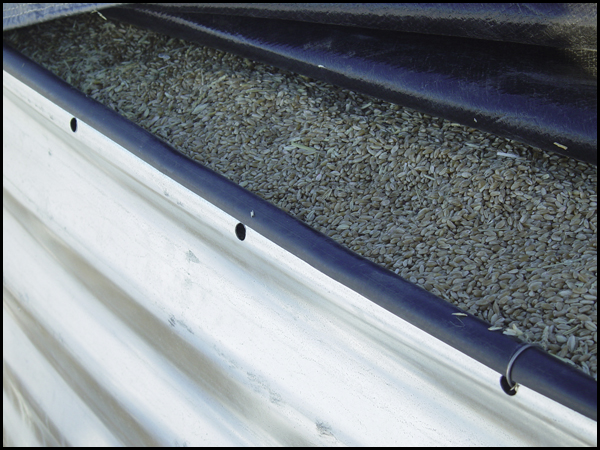

  • Exclusive tarpguard poly edge protector to protect tarp from the steel edge
  • Top quality 6.3 oz. silver colored tarp (See description below)
  • Self tapping screws and washers to attach tarp to steel ring
  • 2" diameter posts, 63" long, for installation on every second vertical seam, around the inside for wind protection when empty.
Optional:

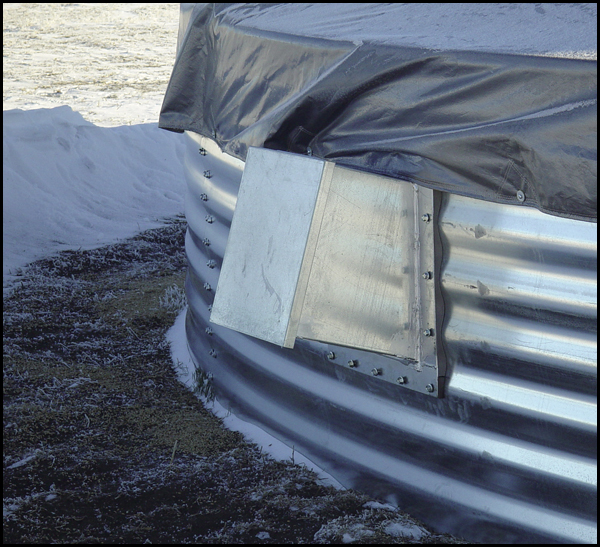

  • 16" square unloading auger port, angled through side wall metal
  • Gate posts, 4" x 6" this will allow sheets to be removed after a portion of the grain has been removed. Gives you access with a front end loader or Bobcat
  • Heavy Duty tarp option (See description below)


Tarpaulins

  • Canadian manufactured
  • Fabric is 6.3 oz. poly weave
  • A silver outside reflects away the sun's rays
  • A black underside is carbon treated which prevents sunlight from penetrating the woven fabric
  • Excellent fit to grain pile
  • Air vent at the peak

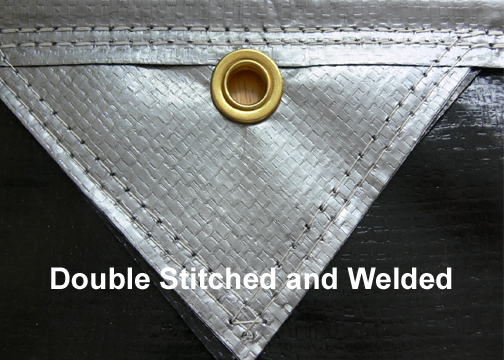

  • Rope sewn into the hem-line, with grommets in triple thickness material every 3'
  • Rope for tie down if preferred

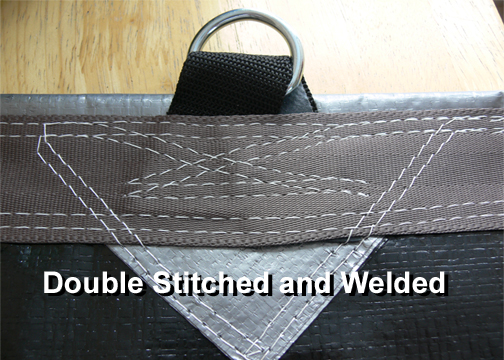

Heavy Duty Tarp Option:
  • 1 1/8" D-rings spaced at 36" intervals to ensure enough tie-downs to properly secure the large covers
  • 2" webbing sewn into edge hem in addition to the rope and reinforcing patches already standard on other covers. This provides extra strength to the edge of the cover

Care and Storage

  • Tarpaulins should be dried and rolled up as soon as the bin is emptied
  • Plywood should be dismantled, cleaned and stored
  • Steel sheets can be left standing if stabilizer posts have been installed

User Tips for Temporary Grain Storage Bins

  • When harvested in very hot conditions, large capacity bins should be monitored for heating
  • Open the tarp on cool days and allow heat to escape
  • Your grain pile should be well shaped to a point - use a spout on your loader
  • Bin needs to be completely filled to top of the walls.
  • Fold your tarp in 1/2, then work the folded half up and over your grain pile.
  • There is never any need to stand on the grain pile

Visit our pricing page for more information and a complete list of products.
